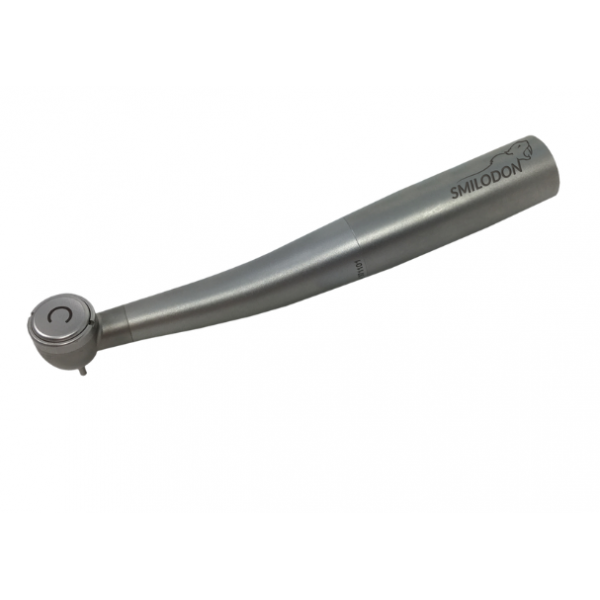

SMILODON High Speed Swivel Handpieces... the Next Generation of Precision Dental Products by MTI Dental. Available in Standard & Mini-Head versions, as well as Fiber-Optic and Non-Optics versions.
Mini Head Specifications
Air Pressure: 32-40 psi (220-275 kPa) Recommended
Rotation Direction: Forward Only
Motor Speed: 450,000 rpm
Attachment Type: Accepts Burs (Push-Button Changing)
Long life precision ceramic bearings
Lubrication: Required
Autoclave at Maximum 275º F (135º C)
Fiber-Optics: Yes
Illumination: 100K+ LUX LED Coupler with 25K+ LUX Illumination at Handpience
Quick-Disconnect Compatible: Yes, Requires 360º Swivel KAVO Multiflex Compatible Coupler
Weight: 42 grams
Power: 27W
Head Diameter: 10.4 mm
Head length: 12.1 mm
Spray Port: Single H2O Spray Port
Warranty: 2 Year
Standard Head Specifications
Air Pressure: 32-40 psi (220-275 kPa) Recommended
Rotation Direction: Forward Only
Motor Speed: 360,000 rpm
Attachment Type: Accepts Burs (Push-Button Changing)
Long life precision ceramic bearings
Lubrication: Required
Autoclave at Maximum 275º F (135º C)
Fiber-Optics: Yes
Illumination: 100K+ LUX LED Coupler with 25K+ LUX Illumination at Handpience
Quick-Disconnect Compatible: Yes, Requires 360º Swivel KAVO Multiflex Compatible Coupler
Weight: 46 grams
Power: 27W
Head Diameter: 13mm
Head length: 14.65mm
Spray Port: 4 Quad H2O Spray Port
Warranty: 2 Year
Additional Info:
Mini Head:
Motor Type: High Speed Handpiece (Mini-Head)
Quick-Disconnect Compatible: Yes, Requires 360º Swivel KAVO Multiflex Compatible Coupler
Attachment Type: Accepts Burs (Push-Button Changing)
RPM: 450,000 rpm
Rotation: Forward Only
Autoclave Up to 275º F (135º C): Yes
Warranty: 1 Year on Handpiece and Turbine
Lubrication Required: Yes
Fiber-Optics: Yes
Weight: 42 grams
Power: 18 W
Head Diameter: 10.4 mm
Head Length: 12.1 mm
Spray Port: Single H2O Spray Port
Standard Head:
Motor Type: High Speed Handpiece
Quick-Disconnect Compatible: Yes, Requires 360º Swivel KAVO Multiflex Compatible Coupler
Attachment Type: Accepts Burs (Push-Button Changing)
RPM: 360,000 rpm
Rotation: Forward Only
Autoclave Up to 275º F (135º C): Yes
Warranty: 1 Year on Handpiece and Turbine
Lubrication Required: Yes
Fiber-Optics: Yes
Weight: 46 grams
Power: 20 W
Head Diameter: 13 mm
Head Length: 14.65 mm
Spray Port: 4 Quad H2O Spray Port
